E2E VoLTE call setup(2/4) : IMS registration

Once the UE attaches to the LTE network and the default EPS bearer is created successfully with the IMS APN, the UE registers to the IP Multimedia Subsystem (IMS) network before accessing the VoLTE service. The IMS registration procedure includes the IMS authentication, e.g., IMS-AKA, and security negotiation between UE and IMS network. After successful IMS registration, the IMS network becomes aware of UE context such as subscription profile, registration status, etc. After the initial IMS registration, the UE shall refresh the IMS registration status by periodically sending re-Registration.


It is assumed that the UE has established a PDN connection to the IMS APN with the QCI value of its default EPS bearer set to ‘5’. The IMS registration signal goes through the default EPS bearer and gets inside the IMS core via the P-CSCF. The P-CSCF, I-CSCF and the S-CSCF consists the IMS core and they controls SIP signaling for VoLTE. The I-CSCF and the S-CSCF interworks with the HSS via Diameter Routing Agent (DRA) to retrieve subscriber’s profile, authentication vector, etc. At the front of the P-CSCF lies the Session Border Controller (SBC). The SBC provides a security function like IPSec, topology hiding, media controlling, etc. It can either be co-deployed with the P-CSCF or separated from the IMS Core.

NOTE the DRA between Diameter clients and Diameter servers (i.e., PCRF, HSS) is omitted in the diagram to clarify the reference points.

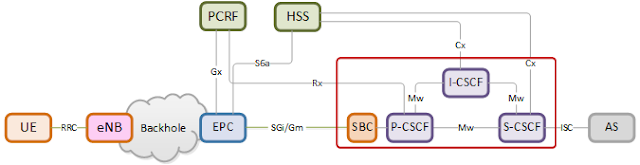

Figure 1. Overall architecture

I. IMS Authentication and Key Agreement (AKA) during IMS registration

The IMS AKA is a mutual authentication methodology used by the IMS network to authenticate a UE. In this authentication procedure, both server and client runs the same authentication algorithm using the same secret key and several public parameters. The secret key is known to both UE and the IMS network. It can be stored in IP Multimedia Services Identity Module (ISIM) and at the same time, be provisioned to the Home Subscriber Server (HSS) in advance. After running the authentication algorithm, the server and the client exchanges their outcome with each other and authenticate the peer by comparing the received authentication parameter with the outcome of their own. The following is the conceptual diagram of the IMS AKA mechanism.

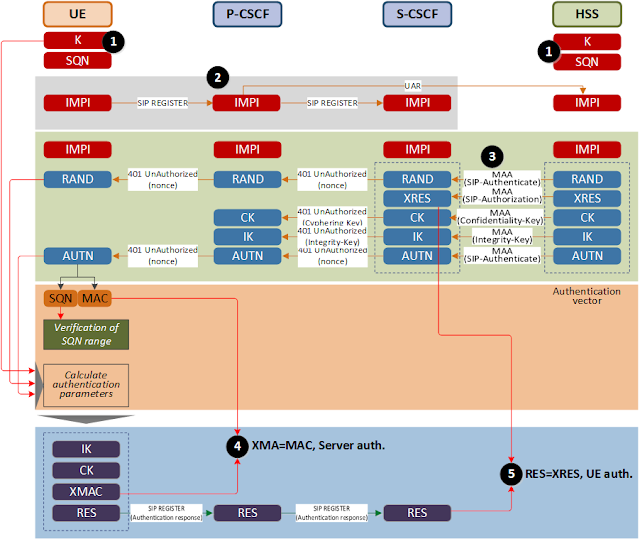

Figure 2. IMS AKA

(1)   The secret-key K and the sequence number SQN are commonly stored in both server and client.
(2)   The UE sends the initial registration with the user identifier towards the IMS Core.
(3)   The S-CSCF (i.e., registrar) queries the HSS for the authentication vector of that subscriber. The HSS generates the random number RAND using the SQN. The HSS uses K, SQN and RAND parameters as input to the authentication algorithm and as a result, obtains a set of authentication parameters, i.e., the authentication vector (AV), as listed below:
  • AUTN : Authentication token represented as a concatenation of MAC and SQN and used by the client to authenticate the server.
  • XRES: Expected correct result of running authentication algorithm and used by the server to authenticate the client.
  • CK: Cipher Key (Optional)
  • IK: Integration Key
The S-CSCF returns AV (i.e., RAND, AUTN, CK, IK) to the P-CSCF and the P-CSCF delivers RAND and AUTN in the response to the initial registration request (see the step#31 for the detail). XRES is stored in the S-CSCF for later use. The CK and IK is used for integrity and security check by the P-CSCF (or SBC).
(4)   The UE extracts MAC and SQN from the received AUTN. The UE verifies the range of SQN and uses AUTN, K and RAND as input to the authentication algorithm. The UE compares the resulting parameter, XMAC with the received MAC. As such, the UE authenticates the server.
(5)   The resulting RES is sent back to the server. The S-CSCF authenticates the client by comparing the received RES with the XRES.

II. IMS registration procedure

Right after the default EPS bearer is established, comes IMS registration procedure. The IMS registration is the procedure for a VoLTE client to register its contact information to the IMS network and it is performed through the existing EPS bearer of QCI=5 in general. The IMS registration procedure is composed of two transactions, that is, the first one is for the UE to obtain the authentication challenge and the other one is to be authenticated using the received authentication challenge.

In case it is a re-registration, the first transaction may not be necessary. The UE will include challenge parameters received in the previous registration procedure so the network is able to authenticate the UE as long as the challenge parameters are still valid. During the registration, the VoLTE client and the IMS network authenticate each other based on the agreed authentication algorithm and in the meantime, negotiate a security algorithm for IP layer transactions.

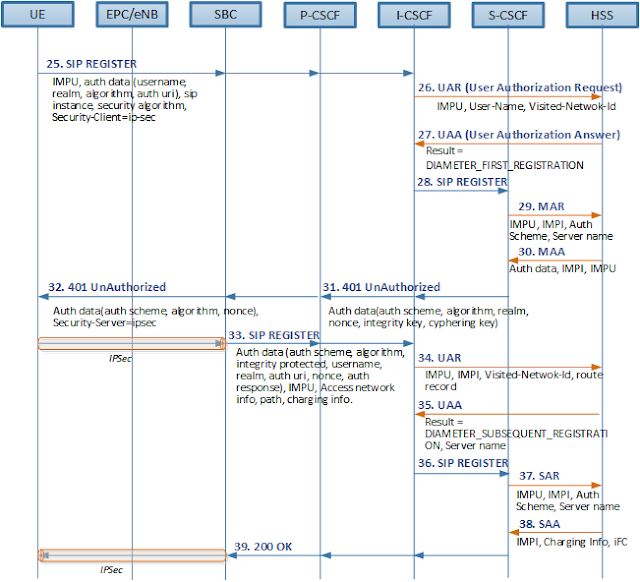

Fig 3. IMS registration flow

[25] The UE initiates the IMS registration by sending the SIP REGISTER towards the P-CSCF.
  • Authorization: Authentication information e.g., authentication scheme, nonce, realm, authentication algorithm, etc. The nonce value is empty as this is the first registration.
  • Expires: The validity time of this registration. The UE is supposed to perform re-registration before the timer is expired. It is usual for the UE to re-register after 1/2*(timer value) seconds. When the UE is connected to the LTE network, the value of this header would be 3600 seconds and when it is connected to the Wi-Fi, it would be 60 seconds typically.
  • Security-Client: A list of supported security algorithm by the UE.
  • Contact: UE IP address, device capabilities and various feature tags.
The following snapshot shows an example of SIP REGISTER.


The P-CSCF routes the SIP REGISTER to the I-CSCF as the P-CSCF does not know at this moment as to which S-CSCF is going to serve this UE yet.

[26] Upon receiving the SIP REGISTER, the I-CSCF performs user registration status query by sending User-Authorization-Request (UAR) to the HSS.
  • User-Name AVP: IMS Private User Identity (IMPI) of the user and used to authenticate the user based on the username part of the value.
  • Public-Identity AVP: IMS Public User Identity, which is either SIP URI or TEL URI of the user.
  • Visited-Network-Identifier AVP: The domain of the visited PLMN
The following snapshot shows an example of UAR.

Fig 5. User Authorization Request (UAR)

[27] The HSS authorizes the user for IMS service (i.e., verifying the user’s IMPI and IMPU) and if successful, returns with the S-CSCF address for this user in the response, User-Authorization-Answer (UAA).
  • Server-Name AVP: The S-CSCF address assigned for the IMS subscriber.
  • Experimental-Result: DIAMETER_FIRST_REGISTRATION if it is the first time IMS access for the user and there is no S-CSCF assigned yet. If there is already assigned S-CSCF for the user, it will be set to DIAMETER_SUBSEQUENT_REGISTRATION and the Server-Name AVP will be provided.
The following snapshot shows the case where there is already assigned S-CSCF for the user, in which case the I-CSCF does not have to assign a new S-CSCF. If there is no assigned S-CSCF for the subscriber, the HSS returns a set of S-CSCF capabilities and the I-CSCF shall assign a new one based on the received capabilities.

Fig 6. User Authorization Answer (UAA)

[28] The I-CSCF forwards the SIP REGISTER towards the indicated S-CSCF.

[29] The S-CSCF sends the Multimedia-Auth-Request (MAR) to the HSS requesting the authentication information.
  • User-Name AVP: IMS Private User Identity (IMPI) of the user and used to authenticate the user based on the username part of the value.
  • Public-Identity AVP: IMS Public User Identity, which is either SIP URI or TEL URI of the user.
  • SIP-Auth-Data-Item AVP: The authentication algorithm set to “Digest-AKAv1-MD5” in this example.
  • SIP-Number-Auth-Items AVP: The number of authentication vectors.
Fig 7. Multimedia Auth Request (MAR)

[30] The HSS responds with the Multimedia-Auth-Answer (MAA) containing the authentication information.
  • SIP-Authorization AVP: XRES, which is one of output obtained after running the authentication algorithm (e.g., AKAv1-MD5).
  • SIP-Authenticate AVP: The concatenation of RAND and AUTN to be used for authentication.

Fig 8. Multimedia Auth Answer (MAA)

[31] The S-CSCF responds with the 401 UnAuthorized to the P-CSCF. The WWW-Authenticate header includes nonce parameter (i.e., a concatenation of RAND and AUTN), IK and CK. The AUTN is a concatenation of the MAC and SQN.
  • WWW-Authenticate: Authentication challenge needed for mutual authentication.

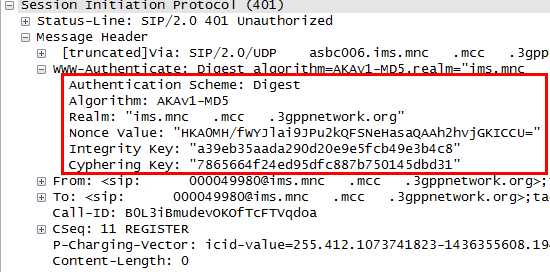

Fig 9. 401 UnAthorized

[32] The P-CSCF responds with the 401 UnAuorized towards the UE. The WWW-Authenticate header includes nonce value. The IK and CK is stored in the P-CSCF and removed from the WWW-Authenticate header. As the UE and the P-CSCF negotiated the security method to use IPsec during the initial SIP registration, the subsequent registration and the call related signals like INVITE, 200 OK, PRACK, BYE, etc. are secured based on IPsec.
  • Security-Server: a list of supported security algorithm by the server.
NOTE In this field test, the SBC takes over security functions of P-CSCF. Therefore the security negotiation and maintaining security parameters like IK and CK are done by the SBC.

Fig 10. 401 UnAthorized

Upon receiving the 401 UnAuthorized, the UE extracts the MAC and the SQN from the AUTN, calculates its own XMAC and checks if the XMAC is the same as the received MAC and if the SQN is in a correct range, thereby the UE authenticates the server. The UE also obtains the RES, IK and CK as a result of running the authentication algorithm.

[33] The UE sends the subsequent SIP REGISTER towards the P-CSCF and the P-CSCF to the I-CSCF.
  • Authorization header: The response to the authentication challenge along with the private user identity, realm, nonce, URI and RES.
  • P-Access-Network-Info: The radio access technology and radio cell identity.

Fig 11. Subsequent SIP Registration

NOTE the above snapshot has been captured between SBC and P-CSCF as the packet on SGi/Gm interface has been secured using IPsec as a result of security negotiation and it couldn’t be decoded by the wireshark in this test. In order to complete the security negotiation, the UE must have included the Security-Verify header in the subsequent REGISTER indicating IPsec, which is not shown in this snapshot as the SBC removes the header before forwarding the message to the IMS core.

[34] Upon receiving the SIP REGISTER, the I-CSCF performs user registration status query by sending User-Authorization-Request (UAR) to the HSS.

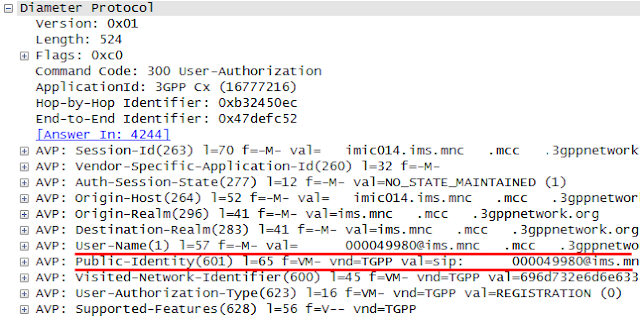

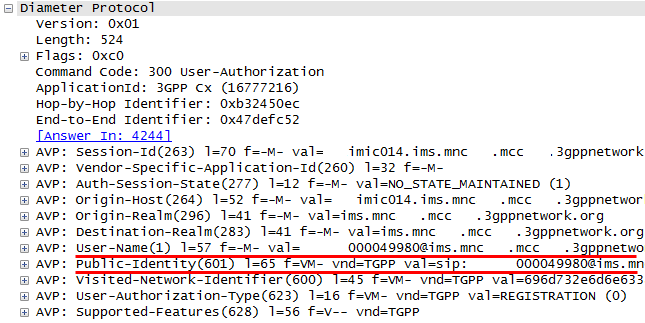

Fig 12. User Auth Request (UAR)

[35] The HSS authorizes the user for IMS service (i.e., verifying the user’s IMPI and IMPU) and if successful, returns with the S-CSCF address for this user in the response, User-Authorization-Answer (UAA).

Fig 13. User Auth Answer (UAA)

[36] The I-CSCF forwards the SIP REGISTER towards the indicated S-CSCF. Upon receiving the subsequent SIP REGISTER, the S-CSCF compares the stored XRES with the received RES (i.e., Digest Authentication response parameter). If they are identical and successfully authenticated, the public user identity is registered in the S-CSCF.

[37] The S-CSCF informs the HSS that the user has been registered by sending Server Assignment Request (SAR). Upon receiving the SAR, the HSS stores the mapping relation between the S-CSCF and the corresponding IMS subscriber.
  • User-Data-Already-Available AVP: Indicator of whether or not the sending S-CSCF has user profile information which is required to service the user. If it is set to USER_DATA_NOT_AVAILABLE, the HSS is expected to provide the user data in the response.

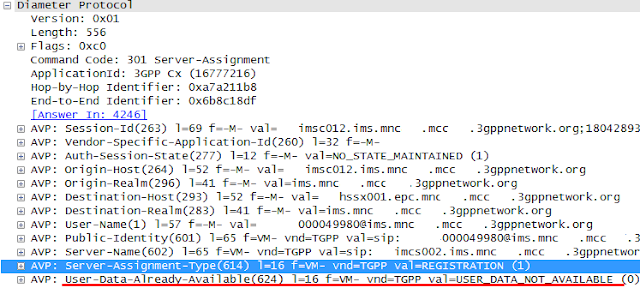

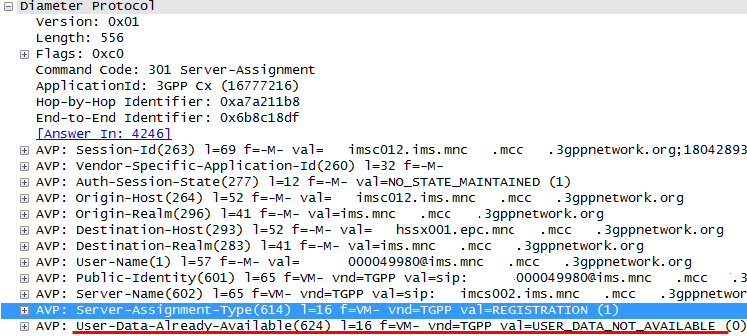

Fig 14. Server Assignment Request (SAR)

[38] The HSS responds with the Server Assignment Answer (SAA) to the S-CSCF. As it was indicated in the SAR that the S-CSCF does not have user profile, the HSS includes the User-Data AVP in the response.

Fig 15. Server Assignment Request (SAA)

The User-Data AVP may contain the following items as is shown below:
  • Private Id
  • Service Profile
  • Public Identity
  • a list of initial Filter Criteria (iFC)

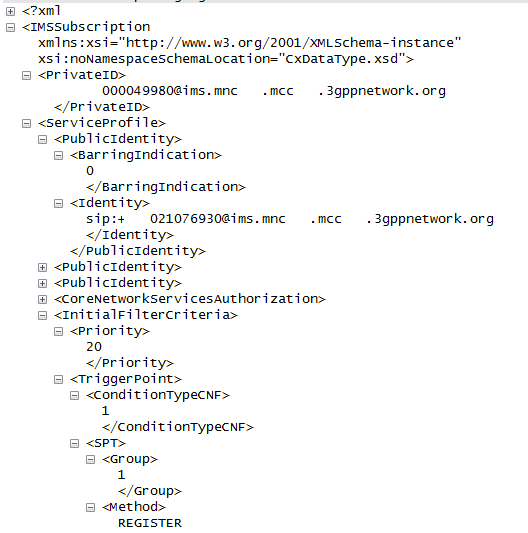

Fig 16. User Data in SAA

[39] The 200 OK for the SIP REGISTER is sent back towards the UE following the reverse signaling path.

Fig 17. 200 OK to SIP EGISTER

NOTE the above message has been captured on the interface between SBC and P-CSCF as the 200 OK on SGi/Gm interface has been secured using IPsec.

After successful IMS registration, the UE subscribes to the reg event package for the public user identity registered at the S-CSCF. The UE will get notified of a registration status of public identities belonging to the same user.

Fig 18. Subscription for reg event package

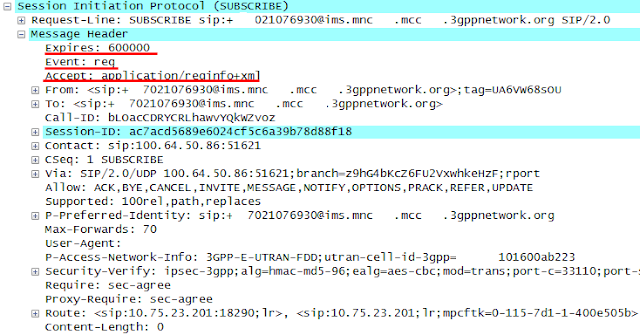

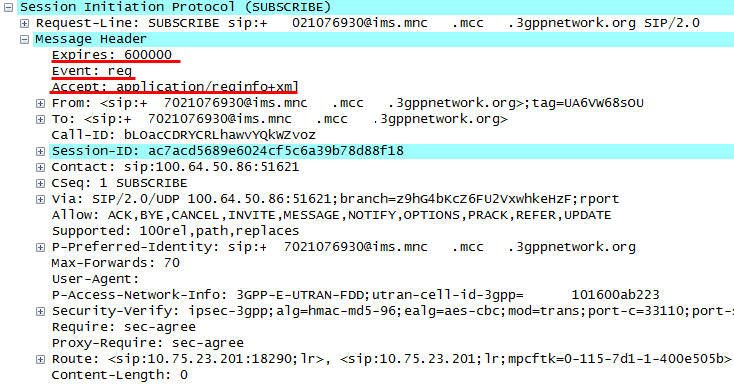

[40] The UE subscribes to the reg event package by sending SIP SUBSCRIBE towards the S-CSCF.
  • Event: “reg” indicating this is the subscription to the reg event package
  • Expires: Validity time period during which this subscription session is valid..


[41] The P-CSCF forwards the SIP SUBSRIBE to the S-CSCF which is known to P-CSCF during the registration procedure.


[42-43] The S-CSCF returns with the 200 OK response and it is forwarded to the UE following the signaling path.

Fig 21. 200 OK response to SIP SUBSCRIBE

[44-45] The S-CSCF notifies the UE of its current registration status by sending SIP NOTIFY, which is forwarded to the UE


[46-47] The UE responds with 200 OK response towards the S-CSCF.

Fig 23. 200 OK response to SIP NOTIFY


[1] IETF RFC4740, "Diameter Session Initiation Protocol (SIP) Application", Nov 2006
[2] IETF RFC3310, "Hypertext Transfer Protocol (HTTP) Digest Authentication Using Authentication and Key Agreement (AKA)", Sep 2002
[3] IETF RFC7315, "Private Header (P-Header) Extension to the Session Initiation Protocol (SIP) for the 3GPP", July 2014
[4] IETF RFC3329, "Security Mechanism Agreement for the Session Initiation Protocol (SIP)", Jan 2003
[5] 3GPP TS 29.228, "IP Multimedia (IM) Subsystem Cx and Dx interfaces; Signaling flows and message contents", v12.3.0, Sep 2014
[6] 3GPP TS 29.229, "Cx and Dx interfaces based on the Diameter protocol; Protocol details", v12.6.0, Jun 2015
[7] 3GPP TS 24.228, "Signaling flow for the IP multimedia call control based on Session Initiation Protocol (SIP) and Session Description Protocol (SDP)", v5.15.0, Sep 2006
[8] 3GPP TS 33.203, "3G Security; Access security for IP-based services", v12.5.0, Mar 2014

 Last Updated: 8th Mar 2016
